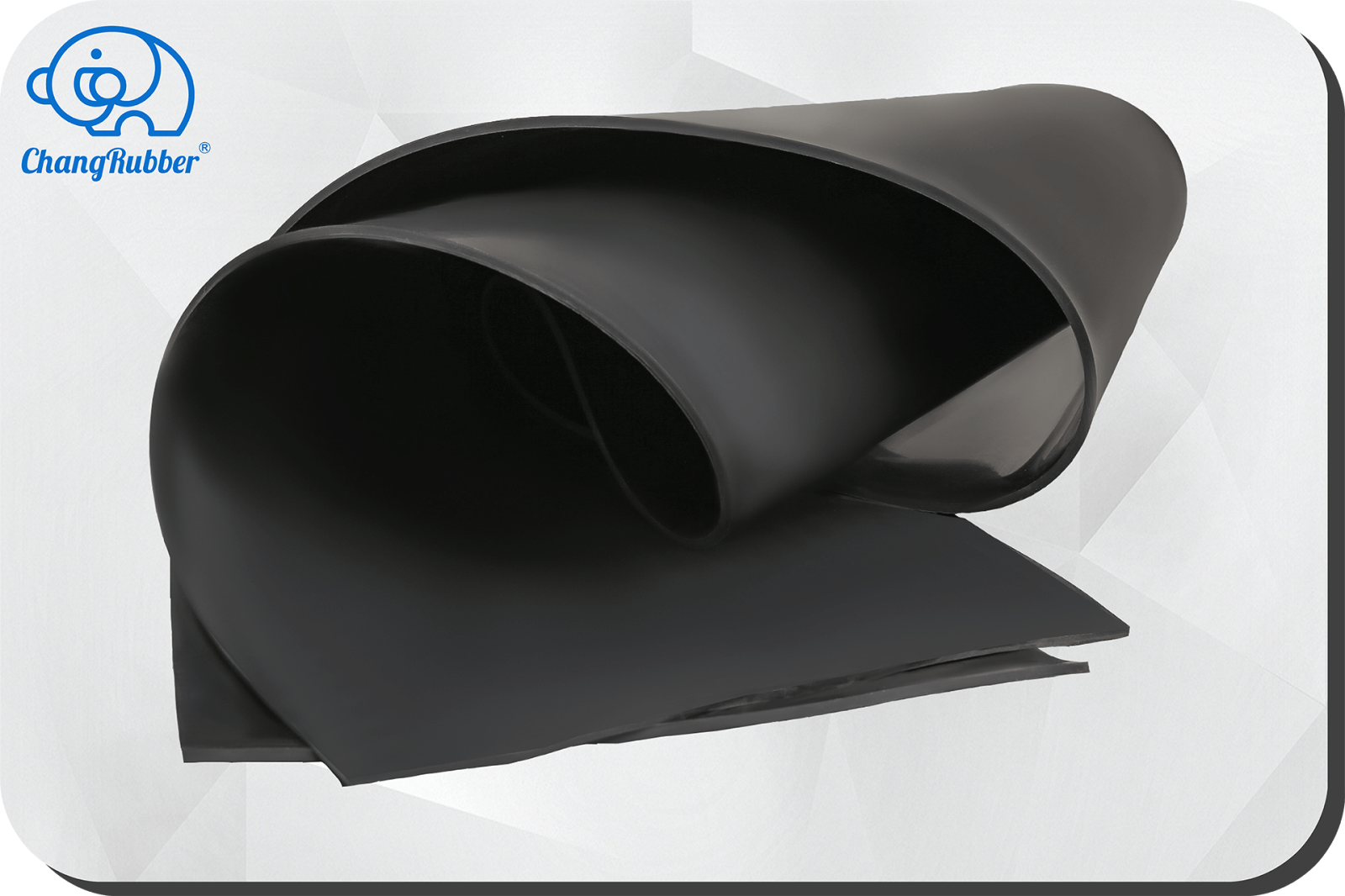

Ethylene Propylene Diene Rubber (EPDM) (THEP140680)
Ethylene Propylene Diene Rubber (EPDM) (THEP140680) EPDM Sheet Rubber Sheet Johor Bahru (JB), Malaysia, Johor Jaya Supplier, Suppliers, Supply, Supplies | EAI Marketing Sdn Bhd

Features

  • Standard Width : 1000mm
  • Width Range : 100mm - 2000mm 10m
  • Length : 10m
  • Thickness : From 1mm to 50mm
  • Standard Color : Black
  • Work Temperature : +120°C

EPDM (Ethylene Propylene Diene monomer) rubber is a type of synthetic rubber, this elastomer is widely use in most of the outdoor application and for chemical and high temperature resistant application. EPDM also exhibits outstanding resistance to Ozone, Steam, and also an electrical insulator. EPDM rubber is widely use as roofing membranes, since it does not pollute the run off rain water, this EPDM rubber sheet is also use in rainwater harvesting. EPDM rubber sheets are also use as geomembranes, rubber mechanical goods, impact modification, seals for solar panel, hose vibrators and pond liners.

ChangExp EPDM rubber sheet is resistant to aging, water, abrasion, UV and ozone, which makes it perfect material to use under exposed environment. They are highly recommended at areas where surface is exposed to weather, sunlight, heat, ozone or gasses. EPDM rubber sheet is also ideal for use in water and is often considered the material of choice for potable water applications.

Advantage

  • Superior resistance to water and steam
  • Highly resistive from sunlight, ozone and UV radiation
  • Very good flexibility at low temperatures

Applications

  • Window seals
  • Automobile beading
  • Rubber beading, pads & profiles
  • Man-way gaskets
  • Low pressure pipe seals
  • Weather strips
SPECIFICATION TEST METHOD TEST RESULT UNIT
Specific Gravity ASTM D297 1.40 g/cm3
Hardness ASTM D2240 80 +/- 5 Shore A
Tensile Strength ASTM D-412 6 MPa
Elongation ASTM D-412 225 %
Tear Strength ASTM D-624 25 kgf/cm
Compression Set (22 Hours at 70°C) ASTM D-395 40 %

WORKING TEMPERATURE
In Air -30°C +120°C
In Oil   -
In Water   +120°C

MAIN CHARACTERISTICS

ELASTICITY COMPRESSION ABRASION FLAME FUELS OZONE
Good Fair Poor Poor Unsuitable Good

Note:
  • All colors available.
  • Cloth insertion, nylon insertion available.
  • Cloth impression finish available.
  • Specification and size on the customer's request.
  • Test methods accord with ISO standard.
  • New product formula can be designed by request.
